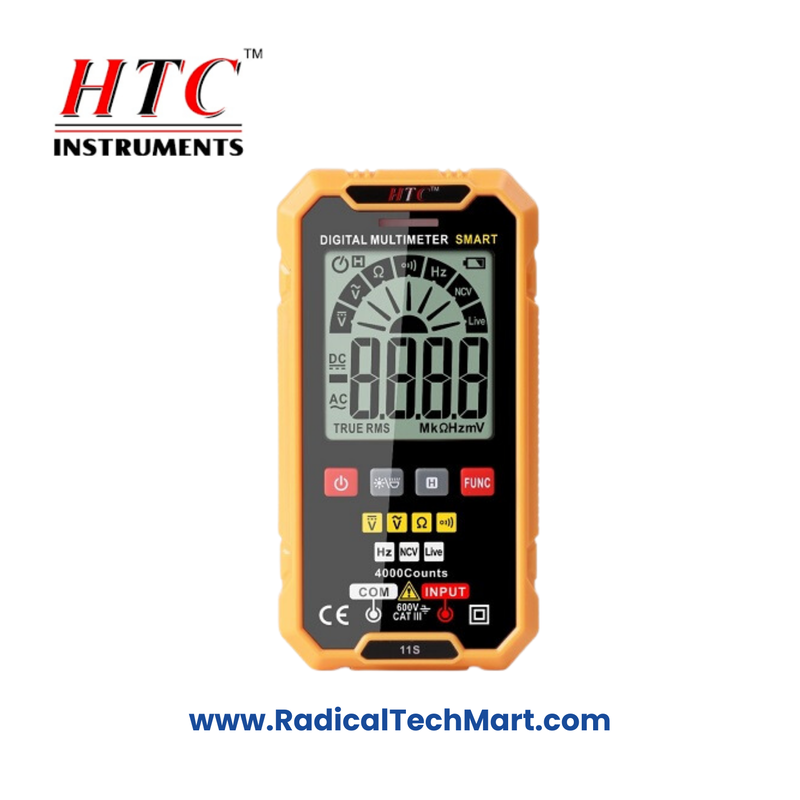

HTC Instruments 11S Smart Multimeter

Features:

• Automatic & Intelligent: The multimeter is automatic and intelligent, making it easier to use than traditional multimeters. No need to set parameters beforehand.
• 4000 Counts: Provides a 4000-count display for accurate readings.
• True RMS: Measures AC signals accurately, even for non-sinusoidal waveforms.
• Non-Contact Voltage (NCV): Allows for safe voltage detection without direct contact.
• Line: Measures line parameters for electrical diagnostics.
• Measures: AC/DC Voltage, Resistance, Frequency, Continuity.

Technical Specifications:

DC Voltage (DCV):

• Range: 400mV, 4V, 40V, 400V, 600V
• Resolution: 0.1mV, 0.001V, 0.01V, 0.1V, 1V
• Accuracy: ±(0.5% + 3)
• Impedance: Approx. 10MΩ

AC Voltage (ACV):

• Range: 4V, 40V, 400V, 600V
• Resolution: 0.001V, 0.01V, 0.1V, 1V
• Accuracy: ±(0.8% + 3)
• Impedance: Approx. 10MΩ
• Frequency Response: 40Hz - 1KHz (True RMS)

Resistance:

• Range: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
• Resolution: 0.1Ω, 0.001kΩ, 0.01kΩ, 0.1kΩ, 0.001MΩ, 0.01MΩ
• Accuracy: ±(1.0% + 5)

Frequency:

• Range: 4Hz, 40Hz, 400Hz, 4kHz, 40kHz, 400kHz, 4MHz
• Resolution: 0.001Hz, 0.01Hz, 0.1Hz, 0.001kHz, 0.01kHz, 0.1kHz, 0.001MHz
• Accuracy: ±(1.0% + 5)

Standard Accessories:

• Test Lead
• Manual
• Carry Case
